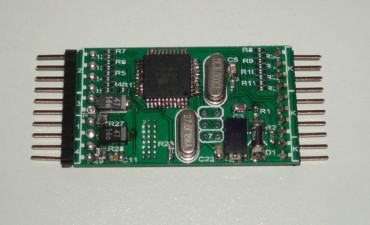

Parduodu Remzibi OSD. Kaina 120 Lt. Klaipėda.
8 65 0 7 87 87

Technical data

Supply power 7V-14V (ext. LiPo 2S - 3S)
Video voltage measurement range 0-15V
Engine(ENG) voltage measurement range 0-30V
General purpose ADC measurement range - any range depended from resistor dividers or used opamps
Video signals - standard PAL or NTSC (both working very well)
GPS - any GPS 5V supply with NMEA protocol with TLL standard TX RX signals (however best results and advantages are with dedicated GPS module working 5Hz update position)
Weight : 16 gram (OSD + dedicated GPS)
Printed board size 20mmx45mm

Functionality

Easy PC connection for configuration/calibration purposes using dedicated PC program (HappyKillmore's excellent work)
No RC channel occupation for proper work in air
GPS detection and configuration automatically (configuration commands fully editable)
Autosave home function configurable , depends of sat number , button “save home” works independently
Metric(km/h) or feet(mil/h) units - configurable
Zero altitude to airfield level - configurable (absolute or relative)
Fully configurable screen layout
Graphical symbols and fonts configurable (possible exotic languages , fully editable font table)
Voltages calibration function and all ADC inputs including alarms
Frequency calibration for Hz or RPM or whatever else we want to use this input T0

Button function

Save home position (short click) (work only when GPS is detected)
Video mode change (NTSC or PAL) press and hold button for about 1 second (work only when GPS is detected)
Configuration mode (pressed and hold button then connect power and release button , font pattern on screen will appear) for USB communicate

Shown on screen informations

Latitude (format DDMM.MMMM or DD.DDDDDD can be choosen)
Longitude (format DDMM.MMMM or DD.DDDDDD can be choosen)
Speed (k/m or miles/h can be choosen)
Altitude (meters or feet)
To-home course (animated arrow or whatever else animation definable by user)
To-home distance (meters or feet)
Satellite quantity
Video battery voltage (individually scaled and calibrated)
Main battery voltage (individually scaled and calibrated)
Flight timer
Variometer (meters/s or feet/s)
UTC Time
UTC Date
Alarms for distance , ADC , attitude , battery's voltages (individually scaled and calibrated)
32 static displayed independent graphical-character symbols , configurable
After detection 0 speed for configurable X seconds , shows maximal values for altitude , distance , speed , function can be off
6 ADC channels to use with any additional sensors , each ca be individually calibrate and alarm set , cooperate with any additional sensors (optionally scaled by opamp or resistor dividers) with analog output (RSSI , air pressure, current sensor , temperature , whatever else with analog output) , display format as 123 or 123.4 can be chosen
Frequency meter (RCl input resistor need 220-515ohm or T0 in new board) - can be scaled for any units by gain as Hz or RPM , cooperate with magnetic(halotron) or optical sensor - or can be used as frames counter when connected to RX output directly
OSD have support for $MlleeTEXT<CRLF> custom messages - for those who want to display his own text or fonts(graphics) anywhere at display , $M can be transmitted between $GPGGA and $GPRMC GPS strings by “your device”
Since v1.77 firmware GPS configuration support MTK as strings and Ublox as binary GPS modules

Kaina krenta: 115 Lt
